Shaft Mounted Gearbox Reducer

Shaft Mounted Gearbox Reducer

Thông số kỹ thuật sản phẩm

Mã sản phẩm: ZJY Series
Nhãn hiệu sản phẩm:
Xuất xứ:
Lượt xem: 6631
Mạng xã hội:

Mounting type: Tie rod hanging shaft mounted
ZJY Series Shaft Mounted Gearbox Reducer is mounted directly in a way of hanging on the dynamic input shaft of matching master machine, which dispenses with the connecting accessory and decelerator erection platform. It is applicable for the mechanical drive of bucket elevator，belt conveyor, and flight conveyor, as well as matching with other similar master machine.

ZJY Series Shaft Mounted Speed Reducer is manufactured according to JB/T9050.1-1999 standard, and main drive components are made of quality alloy steels. Gar wheel is processed with carburizing and quenching and grinding teeth with precision of Class6(GB10095.1-2001). The gearbox reducer is compact size with high carrying capacity, long service life, low noise, and high efficiency. ZJY has the same output torque as ZJ shaft mounted gearbox. ZJY weights only 30% of ZJ, therefore, the rigidity required for the master machine frame is significantly decreased, and ZJY drives stably.

Not only ZJY series shaft mounted speed reducer can be operated double direction, but also can be equipped with anti-runback device to achieve one way braking.

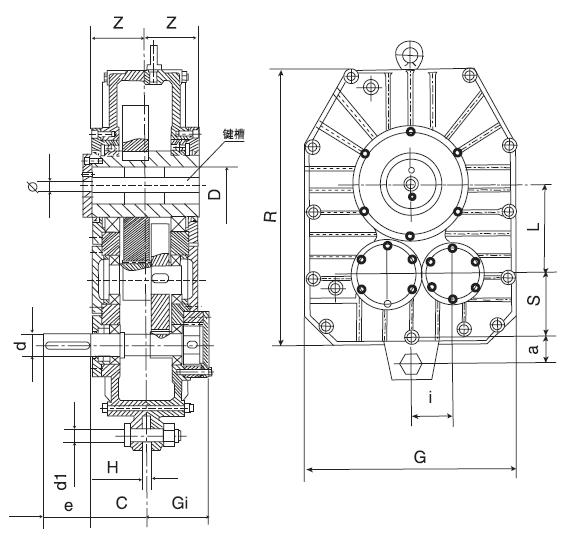

Contour and Size of ZJY Series Shaft Mounted Gearbox Reducer:
Contour of ZJY Series Shaft Mounted Gearbox

Type Z φ D d d1 H e c Gi R L G S a i
ZJY106 67 13 45 24 14 16 50 83 88 315 103.0 240 80 40 50
ZJY125 76 13 55 28 20 16 60 78 100 378 120.0 270 102 48 55
ZJY150 85 13 60 38 20 20 80 98 110 445 144.3 330 105 53 65
ZJY180 100 17 70 42 25 24 110 117 133 539 174.3 396 145 65 80
ZJY212 120 22 85 48 25 30 110 121 156 625 204.7 477 160 70 95
ZJY250 150 26 100 55 28 30 110 165 164.5 740 241.4 570 195 70 125
ZJY300 164 32 120 65 28 36 140 182 185 840 288.6 660 210 75 130
