RV Series Worm Gearbox With Motor

Thông số kỹ thuật sản phẩm

Mã sản phẩm: RV Series
Nhãn hiệu sản phẩm:
Xuất xứ:
Lượt xem: 7880
Mạng xã hội:

Main Characteristic of RV Series Worm Gearbox With Motor
RV series worm gear reducer is a new-generation product developed by Aokman on the basis of perfecting WJ series products with a compromise of advanced technology both at home and abroad.
1. High-quality aluminum alloy, light in weight and non-rusting.
2. Large in output torque.
3. Smooth running and low noise, RV series gear reducer can work long time in dreadful conditions.
4. High radiation efficiency.
5. Good-looking appearance, durable in service life and small volume.
6. Suitable for omnibearing installation.

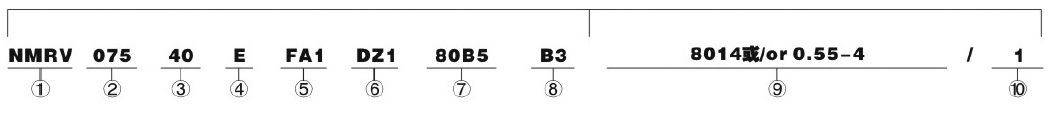

Model Illumination

NMRV/NRV WORM GEARED MOTOR AND WORM GEARBOX

model illumination of rv series worm geared motor

Comments
Model code
1.NMRV: Hole input with flange
2.NRV: Shaft input without flange
1
Central distance of worm gearbox(spec) 2
Speed ratio of worm reducer
(i=5,7.5,10,15,20,25,30,40,50,60,80,100)
3
1.No "E" means single extension worm shaft
2."E" means Double extension worm shaft
4
1.No means without output flange
2.FA,FB,FC,FD,FE(1/2) means output flange and position
5
1.No mark means hole output
2.DZ(1/2): Single output shaft and position
3.SZ: Double output shaft
6
Normalized form of input flange (without motor) 7
Installation position code 8
1.No mark means without motor
2.Motor model (poles of power)
9
Position diagram for motor terminal box
Default position "1" not to write out is ok
10
  • Rated Power:0.09KW~11KW
  • Rated Torque:1.7kw~1760N.m
  • Gear Arrangement:Worm & Wheel
  • Frequency & Poles:50HZ or 60HZ of 4Pole,6Pole and 8pole motor
  • Ratio:5, 7.5, 10, … , 100
  • Installation Form:Flange Mounted or Foot Mounted or Torque Arm Mounted
  • Housing:Aluminum and Casting Iron
  • Color:Blue RAL 5010 or Grey
